Xtra Tall Vacuum Reels
The best vacuum reel for high roof vans.
Xtra- Tall Vacuum Reels

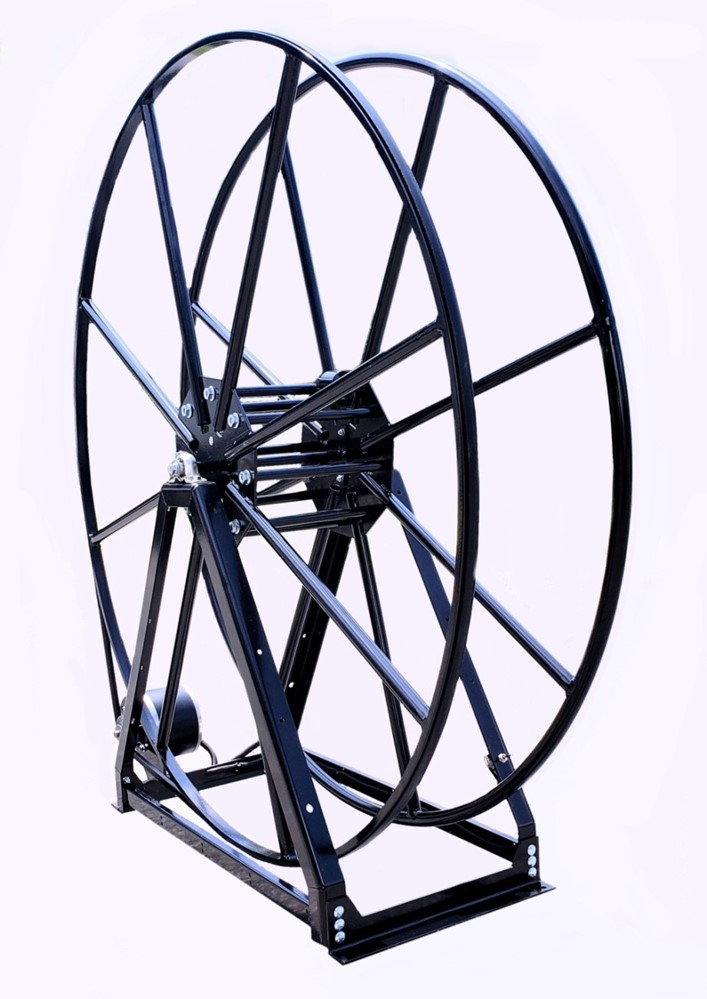

Reel Innovations Xtra Tall Vacuum Reels have been designed to fit “mid roof” and “high roof” vans. They have maximum capacity, with minimal footprint width. Available with capacities of 300 ft., 450 ft., or 600 ft.
- Taller than industry standards, only for “Mid Roof” and “High Roof” vans.
- 8” narrower than industry standard, for a given capacity
- Constructed of heavy- gauge steel for long- life durability.
- Hoops of 1” heavy- gauge tubing, for comfort- grip.
- 8- spokes for extra durability under high- load stress
- “Frame Capture” securely contains A-frame sides for enhanced strength
- Proprietary vacuum hose connectors, fit all vacuum hose cuffs, securely.
- Drive motors contained within the frame, minimizes footprint width.
- Drive motors can be moved to either side, as needed for installation
Industrial powder coat for long- life durability
Reel Innovations Xtra Tall Vacuum Reels have been designed to fit “mid roof” and “high roof” vans. They have maximum capacity, with minimal footprint width. Available with capacities of 300 ft., 450 ft., or 600 ft.
- Taller than industry standards, only for “Mid Roof” and “High Roof” vans.
- 8” narrower than industry standard, for a given capacity
- Constructed of heavy- gauge steel for long- life durability.
- Hoops of 1” heavy- gauge tubing, for comfort- grip.
- 8- spokes for extra durability under high- load stress
- “Frame Capture” securely contains A-frame sides for enhanced strength
- Proprietary vacuum hose connectors, fit all vacuum hose cuffs, securely.
- Drive motors contained within the frame, minimizes footprint width.
- Drive motors can be moved to either side, as needed for installation
Industrial powder coat for long- life durability
| Model | Capacity (2" Hose) |
Electric | Frame Width* | Height | Depth | Weight |
|---|---|---|---|---|---|---|
| VRX300E | 300 ft. | Yes | 16.5" | 55.5" | 50" | 175 lbs. |
| VRX450E | 450 ft. | Yes | 24.5" | 55.5" | 50" | 210 lbs. |
| VRX600E | 600 ft. | Yes | 32.5" | 55.5" | 50" | 245 lbs. |
* Frame width: the width of the vacuum reel frame, side-to-side, at the floor.
BUILT TALLER. DESIGNED TO SAVE SPACE.
Choose the Xtra Tall Vacuum Reel that gives your mid- or high-roof van the hose capacity you need while keeping the floor footprint as narrow as possible.
