Boom Packages

For: Ford Transit Mid Roof, Ford Transit High Roof, Ram ProMaster Standard, Ram ProMaster High Roof

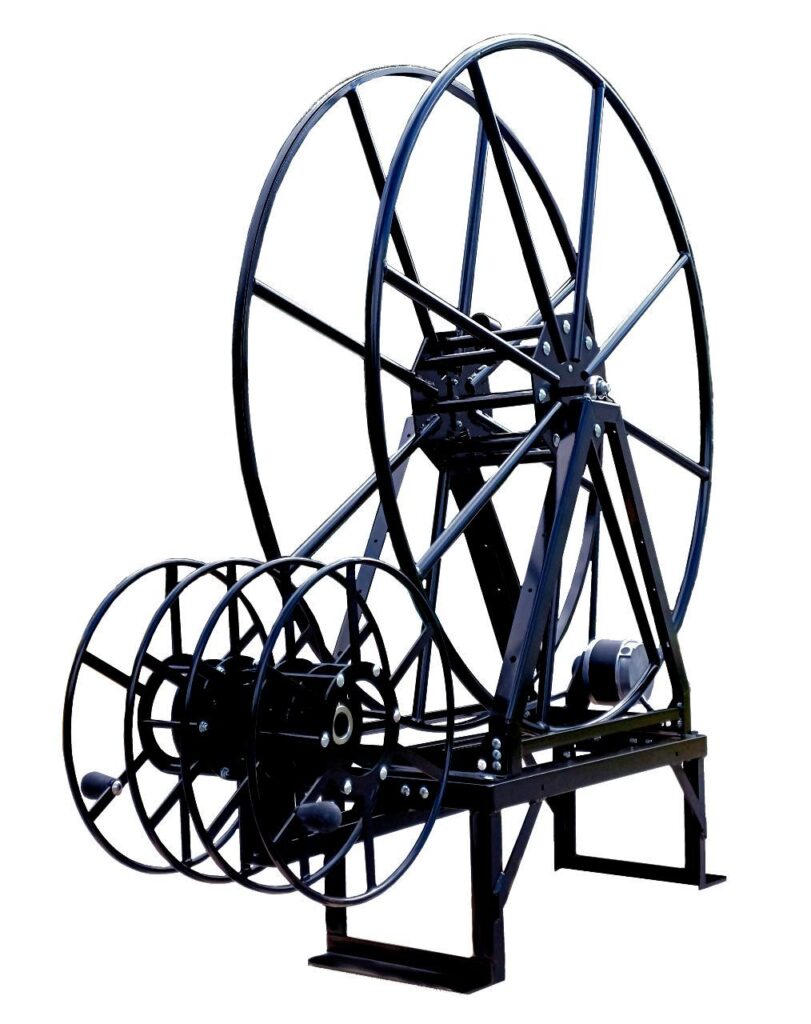

Hose reel “Boom Packages” position all reels up off of the floor, via raising the Vacuum Reel up on a stand and suspending the Supply Reels out over the floor on a “Boom”, which provides cargo space underneath them.

Legs of the vacuum reel stand on the side next to the van’s wheel well are inset, so that the stand (and vacuum reel) can extend over the wheel well, to save more floor space and provide the narrowest possible footprint for a hose reel package for mid- roof and high- roof vans.

Available in 300 ft., 450 ft. and 600 ft. capacities

• Designed to maximize available cargo space, while minimizing the space required to store your vacuum and supply hoses.
• Vacuum Reel Stand features inset legs on one side, positioned 3″ to 5” (depending upon which capacity), which allows the stand to be positioned over the wheel well (and therefore closer to the wall) than could be done otherwise.
• Effective floor space width of the 300 ft. version is reduced from 17″ to 14″. And the floor space width of the 450 ft. version is reduced from 25” to 20”.
• Boom Packages can be installed on either side at the back door, or, at the side door, next to your truck mount, so that the entire back of the van is open for storage.
• PKGBOOM300L models use our Low Profile Supply Reels, instead of our Narrow Profile Supply Reels, positioning the crank handles of both reels away from the wall- side of the package for added convenience.  (Requires live connections for the 2 supply reels. They are included in the package.)
• This configuration is fully accessible underneath from both the side and the “business end”, providing convenient storage that is easy to reach.
