Narrow Profile Supply Reels
Narrow- Profile Supply Reels for Water and Pressure Hoses
Narrow, tall profile keeps required footprint width to a minimum.
- “Strip- proof” axle collars for years of trouble- free service.
- Comfort- grip swivel knob for stress- free operation.
- “Hidden swivel” location protects plumbing and reduces space requirements.
- Industrial powder- coat for durable finish.
Narrow, tall profile keeps required footprint width to a minimum.
- “Strip- proof” axle collars for years of trouble- free service.
- Comfort- grip swivel knob for stress- free operation.
- “Hidden swivel” location protects plumbing and reduces space requirements.
- Industrial powder- coat for durable finish.
| Model | Diameter | Depth | Height | Capacity | Weight |
|---|---|---|---|---|---|
| SRNP300 | 20" | 5.5" | 20" | 300 ft. | 12 lbs. |
| SRNP450 | 20" | 7" | 20" | 450 ft. | 12 lbs. |
Note: Capacities listed are for 1/4" pressure hose.

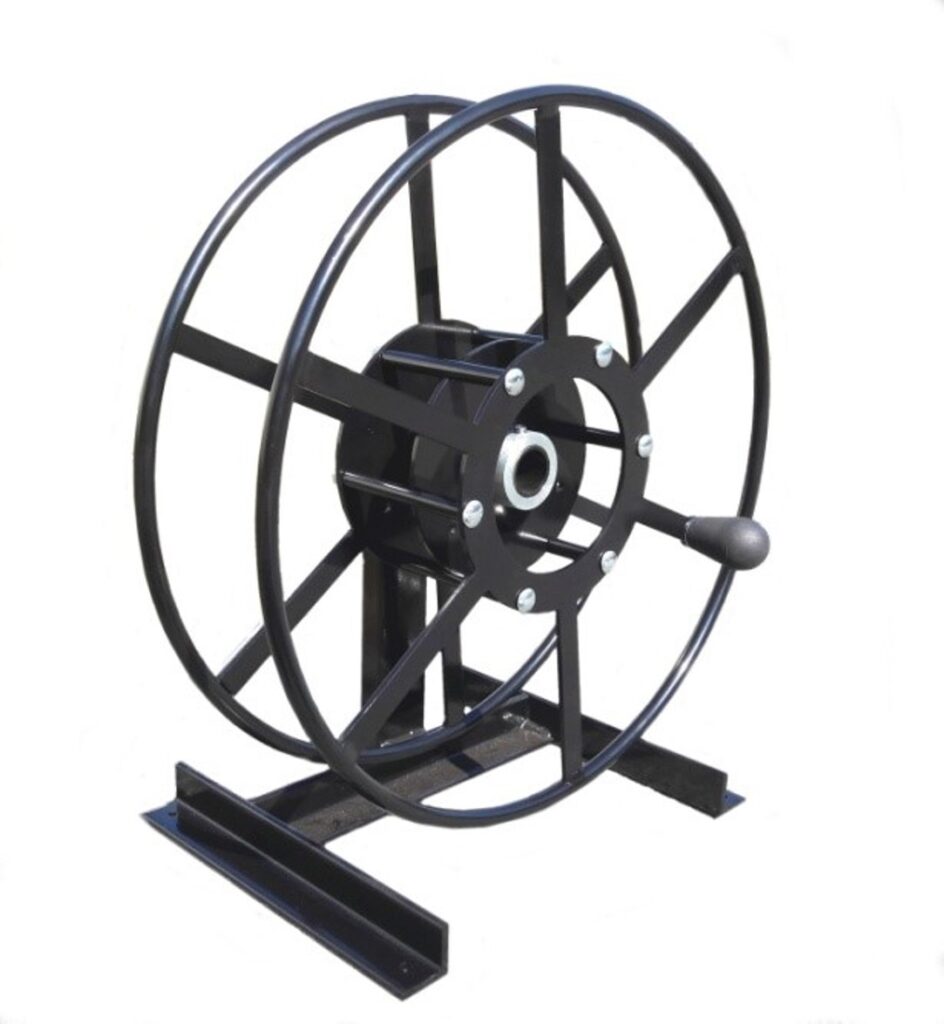

Single Narrow- Profile Supply Reels, Mounted
- Mounted on a very sturdy, “Single” Floor Stand.
- Designed for Ease of Plumbing for Live Connections
- “Strip- proof” axle collars for years of trouble- free service.
- Comfort- grip swivel knob for stress- free operation.
- “Hidden swivel” location protects plumbing and reduces space requirements.
- Industrial powder- coat for durable finish.
| Model | Diameter | Depth | Height | Capacity | Weight |
|---|---|---|---|---|---|
| SRNP300-1 | 20" | 10" | 21.5" | 300 ft. | 20 lbs. |
| SRNP400-1 | 20" | 12" | 21.5" | 450 ft. | 20 lbs. |
Note: Capacities listed are for 1/4" pressure hose.

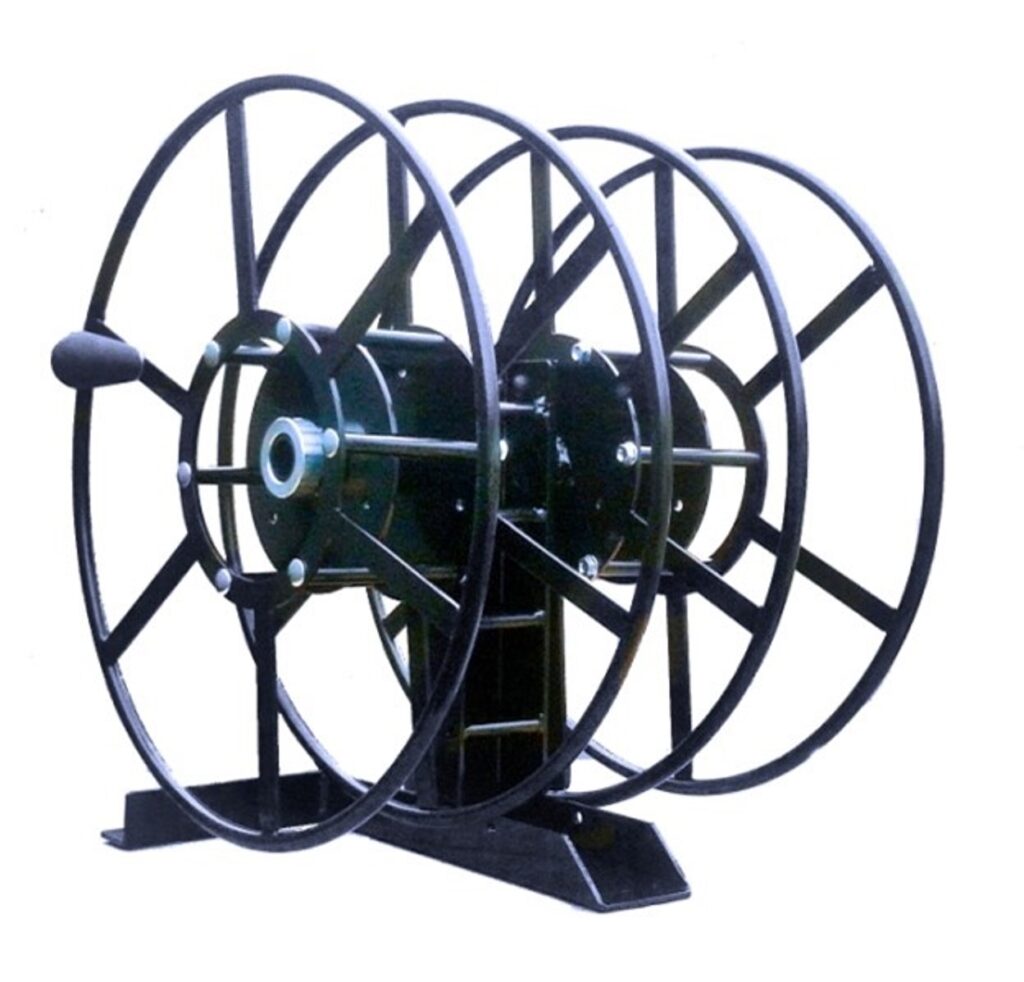

Dual Narrow Profile Supply Reels, Mounted Horizontally (Side by Side)
- Mounted on a very sturdy, “Dual Horizontal” Floor Stand.
- Designed for Ease of Plumbing for Live Connections
- “Strip- proof” axle collars for years of trouble- free service.
- Comfort- grip swivel knob for stress- free operation.
- “Hidden swivel” location protects plumbing and reduces space requirements.
- Industrial powder- coat for durable finish.
| Model | Depth | Width | Height | Capacity | Weight |
|---|---|---|---|---|---|
| SRNP300-2H | 20" | 20" | 21.5" | 300 ft. | 35 lbs. |
| SRNP450-2H | 20" | 24" | 21.5" | 450 ft. | 37 lbs. |
Note: Capacities listed are for 1/4" pressure hose.

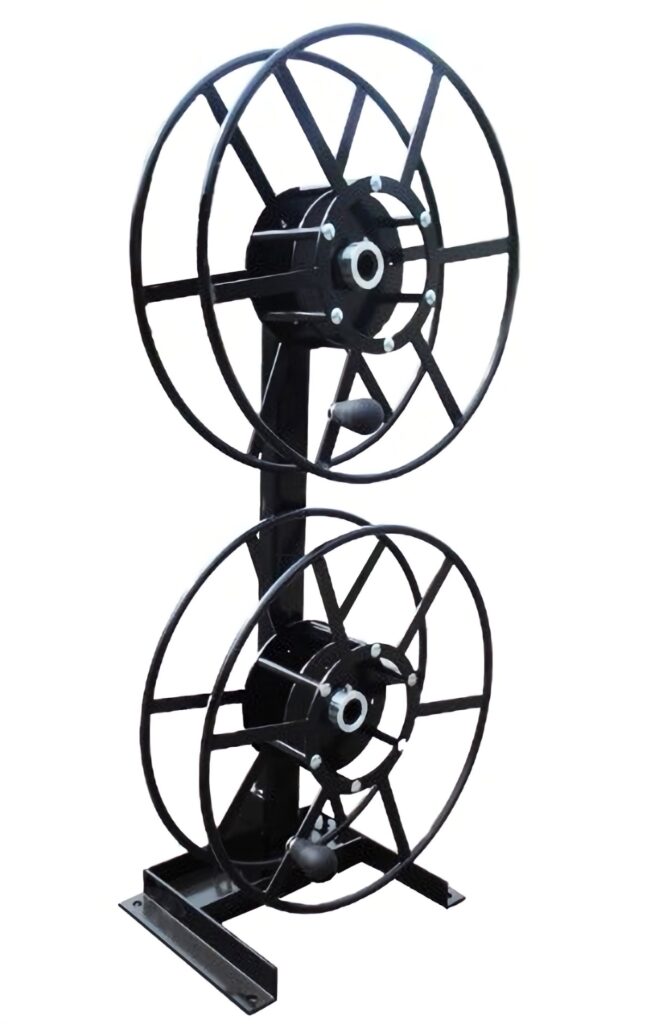

Dual Narrow Profile Supply Reels, Mounted Vertically (Over and Under)
- Mounted on a very sturdy, “Dual Vertical” Floor Stand.
- Designed for Ease of Plumbing for Live Connections
- “Strip- proof” axle collars for years of trouble- free service.
- Comfort- grip swivel knob for stress- free operation.
- “Hidden swivel” location protects plumbing and reduces space requirements.
- Industrial powder- coat for durable finish.
| Model | Diameter | Depth | Height | Capacity | Weight |
|---|---|---|---|---|---|
| SRNP300-2V | 20" | 12" | 43" | 300 ft. x 2 | 35 lbs. |
| SRNP450-2V | 20" | 14" | 43" | 450 ft. x 2 | 37 lbs. |
Note: Capacities listed are for 1/4" pressure hose.
Hose Reel Live Swivel Kits for Our Narrow Profile Supply Reels
The “hidden swivel” feature of our Narrow Profile Supply Reels positions live swivels inside the structure of the reel, which protects the plumbing as well as contains it in the smallest area possible.
- “Hidden Swivel” location in side of your reel
- Rated for 3,000 PSI and 300 degrees, F.
- Ported at 1/2”, they offer minimal flow restriction, even at high flow rates.
- Used well- suited for both low- pressure water supply and high- pressure / high- heat, fluid transfer.
- Each comes with adapters to fit either 1/4”, 3/8”, 1/2″ NPT and 3/4” “garden hose”.
The “hidden swivel” feature of our Narrow Profile Supply Reels positions live swivels inside the structure of the reel, which protects the plumbing as well as contains it in the smallest area possible.
- “Hidden Swivel” location in side of your reel
- Rated for 3,000 PSI and 300 degrees, F.
- Ported at 1/2”, they offer minimal flow restriction, even at high flow rates.
- Used well- suited for both low- pressure water supply and high- pressure / high- heat, fluid transfer.
- Each comes with adapters to fit either 1/4”, 3/8”, 1/2″ NPT and 3/4” “garden hose”.
SWIVKITSRNP25
1/4” connections
SWIVKITSRNP38
3/8” connections
SWIVKITSRNP50
1/2” connections
SWIVKITSRNPGH
“Garden Hose” Connections
MAXIMIZE SPACE WITHOUT SACRIFICING CAPACITY
Choose a Narrow Profile Supply Reel designed to keep your water or pressure hose organized while minimizing the floor space required inside your van.
